Acton紫外—— 衰减片

VUV 衰减片 : 120 – 200 nm

Optical Density	Nominal Transmission	Transmission Range	0.5″ Part Numbers	1.0″ Part Numbers	2.0″ Part Numbers
0.3	50%	42-58%	FND0.3-.5D-V	FND0.3-1D-V	FND0.3-2D-V
0.5	30%	25-35%	FND0.5-.5D-V	FND0.5-1D-V	FND0.5-2D-V
1.0	10%	8-12%	FND1-.5D-V	FND1-1D-V	FND1-2D-V
1.5	3.0%	2.5-3.5%	FND1.5-.5D-V	FND1.5-1D-V	FND1.5-2D-V
2.0	1.0%	0.7-1.4%	FND2-.5D-V	FND2-1D-V	FND2-2D-V
3.0	0.1%	0.06-0.17%	FND3-.5D-V	FND3-1D-V	FND3-2D-V
4.0	0.01%	0.005-0.02%	FND4-.5D-V	FND4-1D-V	FND4-2D-V
5.0	0.001%	0.0007-0.0015%	FND5-.5D-V	FND5-1D-V	FND5-2D-V
6.0	0.0001%	0.00007-0.00014%	FND6-.5D-V	FND6-1D-V	FND6-2D-V

注意: 所有VUV衰减片的衬底材料都是MgF2

UV 衰减片 : 200 – 320 nm

Optical Density	Nominal Transmission	Transmission Range	0.5″ Part Numbers	1.0″ Part Numbers	2.0″ Part Numbers
0.3	50%	42-58%	FND0.3-.5D-M	FND0.3-1D-M	FND0.3-2D-M
0.5	30%	25-35%	FND0.5-.5D-M	FND0.5-1D-M	FND0.5-2D-M
1.0	10%	8-12%	FND1-.5D-M	FND1-1D-M	FND1-2D-M
1.5	3.0%	2.5-3.5%	FND1.5-.5D-M	FND1.5-1D-M	FND1.5-2D-M
2.0	1.0%	0.7-1.4%	FND2-.5D-M	FND2-1D-M	FND2-2D-M
3.0	0.1%	0.06-0.17%	FND3-.5D-M	FND3-1D-M	FND3-2D-M
4.0	0.01%	0.005-0.02%	FND4-.5D-M	FND4-1D-M	FND4-2D-M
5.0	0.001%	0.0007-0.0015%	FND5-.5D-M	FND5-1D-M	FND5-2D-M
6.0	0.0001%	0.00007-0.00014%	FND6-.5D-M	FND6-1D-M	FND6-2D-M

注意:所有VUV衰减片的衬底材料都是熔融石英 fused silica

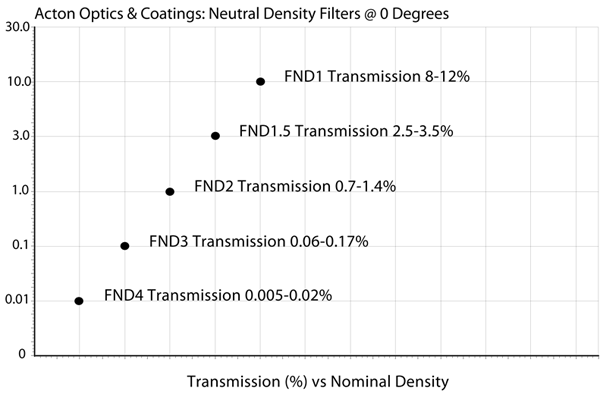

衰减曲线
