Alluxa超窄带滤光片

硬镀膜Alluxa超窄带滤光片,具有严格控制的波长和超级窄的带宽,从250nm-1800nm之间,可以制造透过率超过90%,线宽窄至0.1nm,截止深度超过OD6,截止范围宽泛的超级滤光片。

基本信息

Alluxa Optical Filters and Thin-Film Coatings

Alluxa超窄带滤光片

硬镀膜Alluxa超窄带滤光片,具有严格控制的波长和超级窄的带宽,从250nm-1800nm之间,可以制造透过率超过90%,线宽窄至0.1nm,截止深度超过OD6,截止范围宽泛的超级滤光片。

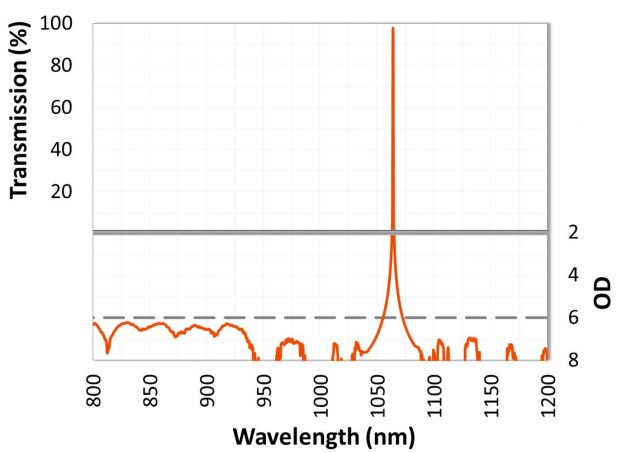

  Ultra-narrow OD6 bandpass filter for use with the 1064 nm Nd:YAG laser.

特点:

  • 高达98%的峰值传输
  • 设计可达OD10阻塞
  • 从紫外到近红外的任何波长(~250 nm到1800 nm)的CWL
  • CWL公差紧至0.05 nm
  • 半宽调制带宽窄至0.1 nm
  • 在632.8 nm测量时,TWE低至0.01波RMS /英寸

Alluxa - The highest performance optical coatings and filters.

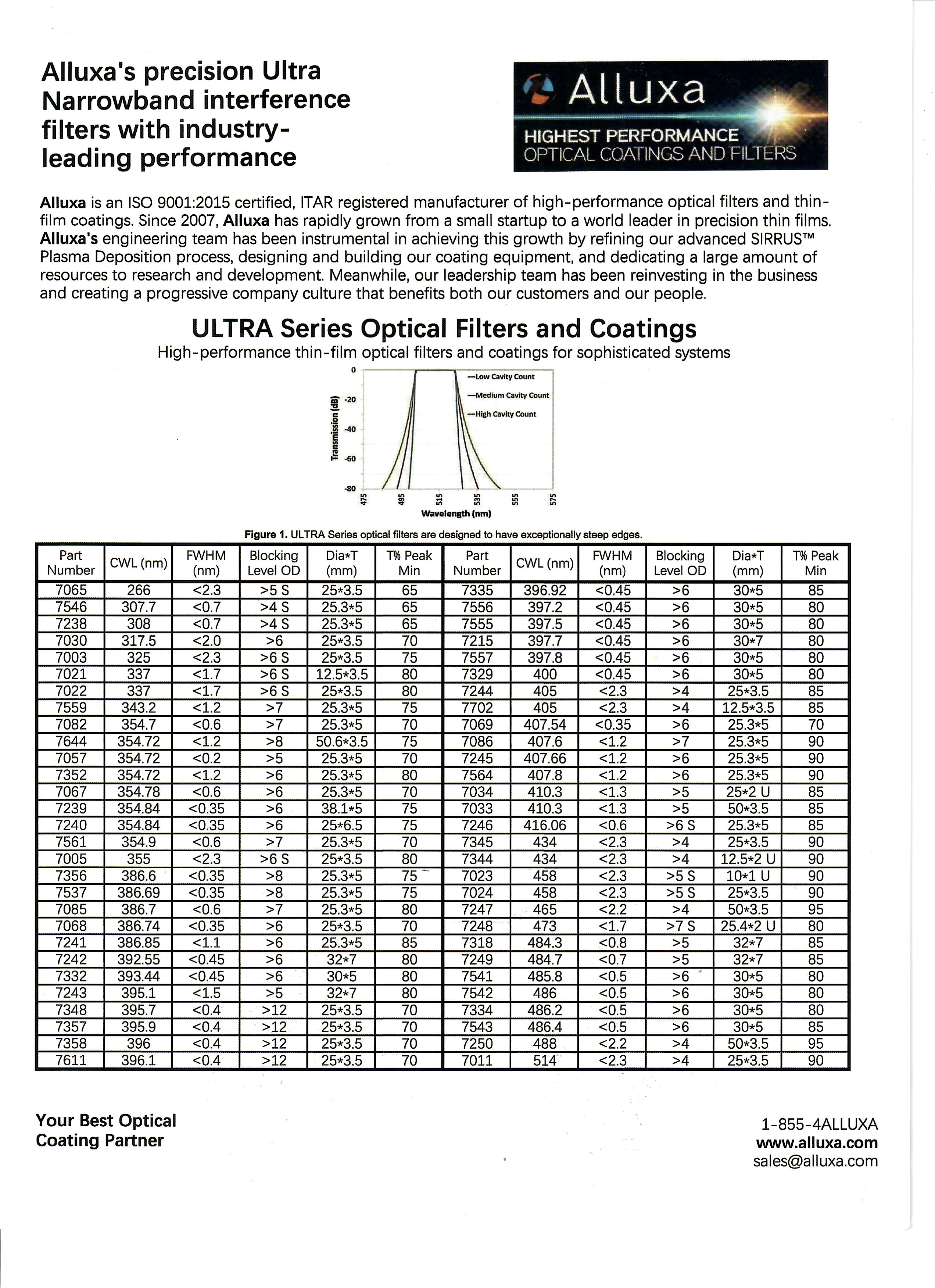

超窄带滤片部分目录
No. DESCRIPTION Item Number
1 266-2 OD5 Ultra Narrow Bandpass Filter 7065
2 307.7-0.5 OD4 Ultra Narrow Bandpass Filter 7546
3 308-0.5 OD4 Ultra Narrow Bandpass Filter 7238
4 317.5-1.8 OD6 Ultra Narrow Bandpass Filter 7030
5 325-2 OD6 Ultra Narrow Bandpass Filter 7003
6 337-1.5 OD6 Ultra Narrow Bandpass Filter 7022
7 337-1.5 OD6 Ultra Narrow Bandpass Filter 7021
8 343.3-1 OD7 Ultra Narrow Bandpass Filter 7559
9 354.7-0.5 OD7 Ultra Narrow Bandpass Filter 7082
10 354.72-1 OD8 Ultra Narrow Bandpass Filter 7644
11 354.72-1 OD6 Ultra Narrow Bandpass Filter 7352
12 354.72-0.15 OD5 Ultra Narrow Bandpass Filter 7057
13 354.78-0.5 OD6 Ultra Narrow Bandpass Filter 7067
14 354.84-0.3 OD6 Ultra Narrow Bandpass Filter 7240
15 354.84-0.3 OD6 Ultra Narrow Bandpass Filter 7239
16 354.9-0.5 OD7 Ultra Narrow Bandpass Filter 7561
17 355-2 OD6 Ultra Narrow Bandpass Filter 7005
18 386.6-0.3 OD8 Ultra Narrow Bandpass Filter 7536
19 386.69-0.3 OD8 Ultra Narrow Bandpass Filter 7537
20 386.7-0.5 OD7 Ultra Narrow Bandpass Filter 7085
21 386.74-0.3 OD6 Ultra Narrow Bandpass Filter 7068
22 386.85-0.9 OD6 Ultra Narrow Bandpass Filter 7241
23 392.55-0.37 OD6 Ultra Narrow Bandpass Filter 7242
24 393.44-0.37 OD6 Ultra Narrow Bandpass Filter 7332
25 395.1-1.3 OD5 Ultra Narrow Bandpass Filter 7243
26 395.7-0.3 OD12 Ultra Narrow Bandpass Filter 7348
27 395.9-0.3 OD12 Ultra Narrow Bandpass Filter 7357
28 396-0.3 OD12 Ultra Narrow Bandpass Filter 7358
29 396.1-0.3 OD12 Ultra Narrow Bandpass Filter 7611
30 396.92-0.37 OD6 Ultra Narrow Bandpass Filter 7335
31 397.2-0.37 OD6 Ultra Narrow Bandpass Filter 7556
32 397.5-0.37 OD6 Ultra Narrow Bandpass Filter 7555
33 397.7-0.37 OD6 Ultra Narrow Bandpass Filter 7215
34 397.8-0.37 OD6 Ultra Narrow Bandpass Filter 7557
35 400-0.37 OD6 Ultra Narrow Bandpass Filter 7329
36 405-2 OD4 Ultra Narrow Bandpass Filter 7244
37 405-2 OD4 Ultra Narrow Bandpass Filter 7702
38 407.54-0.3 OD6 Ultra Narrow Bandpass Filter 7069
39 407.6-1 OD7 Ultra Narrow Bandpass Filter 7086
40 407.66-1 OD6 Ultra Narrow Bandpass Filter 7245
41 407.8-1 OD6 Ultra Narrow Bandpass Filter 7564
42 410.3-1.1 OD5 Ultra Narrow Bandpass Filter 7034
43 410.3-1.1 OD5 Ultra Narrow Bandpass Filter 7033
44 416.06-0.5 OD6 Ultra Narrow Bandpass Filter 7246
45 434-2 OD4 Ultra Narrow Bandpass Filter 7344
46 434-2 OD4 Ultra Narrow Bandpass Filter 7345
47 458-2 OD5 Ultra Narrow Bandpass Filter 7023
48 458-2 OD5 Ultra Narrow Bandpass Filter 7024
49 465-2 OD4 Ultra Narrow Bandpass Filter 7346
50 465-2 OD4 Ultra Narrow Bandpass Filter 7247
51 473-1.5 OD7 Ultra Narrow Bandpass Filter 7248
52 484.3-0.6 OD5 Ultra Narrow Bandpass Filter 7318
53 484.7-0.6 OD5 Ultra Narrow Bandpass Filter 7249
54 485.8-0.44 OD6 Ultra Narrow Bandpass Filter 7541
55 486-0.44 OD6 Ultra Narrow Bandpass Filter 7542
56 486.2-0.44 OD6 Ultra Narrow Bandpass Filter 7334
57 486.4-0.44 OD6 Ultra Narrow Bandpass Filter 7543
58 488-2 OD4 Ultra Narrow Bandpass Filter 7250
59 514-2 OD4 Ultra Narrow Bandpass Filter 7010
60 514-2 OD4 Ultra Narrow Bandpass Filter 7011
61 523.5-0.6 OD6 Ultra Narrow Bandpass Filter 7673
62 523.5-0.6 OD6 Ultra Narrow Bandpass Filter 7042
63 524.89-1 OD3 Ultra Narrow Bandpass Filter 7251
64 530.2-2 OD6 Ultra Narrow Bandpass Filter 7059
65 532-1.5 OD6 Ultra Narrow Bandpass Filter 7359
66 532.0-1 OD6 Ultra Narrow Bandpass Filter 7627
67 532-1 OD6 Ultra Narrow Bandpass Filter 7058
68 532.0-0.15 OD6 Ultra Narrow Bandpass Filter 7235
69 532-1.5 OD6 Ultra Narrow Bandpass Filter 7360
70 532.0-0.25 OD6 Ultra Narrow Bandpass Filter 7690
71 532.0-0.25 OD6 Ultra Narrow Bandpass Filter 7549
72 532.0-0.15 OD6 Ultra Narrow Bandpass Filter 7081
73 532.07-1 OD4 Ultra Narrow Bandpass Filter 7008
74 532.07-1 OD4 Ultra Narrow Bandpass Filter 7009
75 532.08-1 OD6 Ultra Narrow Bandpass Filter 7353
76 532.08-0.17 OD5 Ultra Narrow Bandpass Filter 7056
77 532.08-1 OD8 Ultra Narrow Bandpass Filter 7654
78 532.1-0.2 OD6 Ultra Narrow Bandpass Filter 7252
79 532.1-0.3 OD5 Ultra Narrow Bandpass Filter 7016
80 532.1-0.2 OD6 Ultra Narrow Bandpass Filter 7252
81 532.2-0.15 OD6 Ultra Narrow Bandpass Filter 7316
82 532.2-0.2 OD6 Ultra Narrow Bandpass Filter 7562
83 532.2-0.25 OD6 Ultra Narrow Bandpass Filter 7691
84 532.2-0.3 OD6 Ultra Narrow Bandpass Filter 7041
85 532.2-1 OD6 Ultra Narrow Bandpass Filter 7628
86 532.21-0.25 OD6 Ultra Narrow Bandpass Filter 7255
87 532.21-0.25 OD6 Ultra Narrow Bandpass Filter 7254
88 532.3-0.3 OD5 Ultra Narrow Bandpass Filter 7687
89 532.3-0.2 OD7 Ultra Narrow Bandpass Filter 7253
90 532.3-0.3 OD6 Ultra Narrow Bandpass Filter 7566
91 532.5-2.25 OD3 Ultra Narrow Bandpass Filter 7078
92 532.6-0.2 OD6 Ultra Narrow Bandpass Filter 7622
93 532.6-0.2 OD6 Ultra Narrow Bandpass Filter 7623
94 570-2 OD4 Ultra Narrow Bandpass Filter 7037
95 572.6-2 OD4 Ultra Narrow Bandpass Filter 7038
96 587.6-1.5 OD6 Ultra Narrow Bandpass Filter 7077
97 587.63-0.47 OD6 Ultra Narrow Bandpass Filter 7331
98 589.5-1 OD4 Ultra Narrow Bandpass Filter 7604
99 589.16-0.5 OD4 Ultra Narrow Bandpass Filter 7256
100 589.2-2 OD4 Ultra Narrow Bandpass Filter 7257
101 589.45-1 OD6 Ultra Narrow Bandpass Filter 7258
102 589.5-1 OD4 Ultra Narrow Bandpass Filter 7072
103 589.7-1 OD4 Ultra Narrow Bandpass Filter 7603
104 607.4-0.3 OD8 Ultra Narrow Bandpass Filter 7354
105 607.6-1 OD7 Ultra Narrow Bandpass Filter 7087
106 607.7-1.6 OD6 Ultra Narrow Bandpass Filter 7070
107 608-1 OD7 Ultra Narrow Bandpass Filter 7617
108 608.5-1 OD7 Ultra Narrow Bandpass Filter 7618
109 630-0.4 OD4 Ultra Narrow Bandpass Filter 7341
110 630.2-0.5 OD6 Ultra Narrow Bandpass Filter 7259
111 630.3-2 OD4 Ultra Narrow Bandpass Filter 7313
112 630.3-2 OD4 Ultra Narrow Bandpass Filter 7315
113 649.1-1 OD4 Ultra Narrow Bandpass Filter 7260
114 650-1 OD4 Ultra Narrow Bandpass Filter 7261
115 652-3 OD6 Ultra Narrow Bandpass Filter 7015
116 656.1-1 OD5 Ultra Narrow Bandpass Filter 7262
117 656.1-1 OD5 Ultra Narrow Bandpass Filter 7263
118 656.2-1.5 OD6 Ultra Narrow Bandpass Filter 7236
119 656.3-1 OD4 Ultra Narrow Bandpass Filter 7018
120 656.3-1 OD4 Ultra Narrow Bandpass Filter 7019
121 658.7-0.3 OD5 Ultra Narrow Bandpass Filter 7308
122 659.19-0.3 OD5 Ultra Narrow Bandpass Filter 7079
123 659.19-0.3 OD5 Ultra Narrow Bandpass Filter 7089
124 659.4-0.3 OD5 Ultra Narrow Bandpass Filter 7310
125 659.4-0.3 OD5 Ultra Narrow Bandpass Filter 7337
126 659.6-0.3 OD5 Ultra Narrow Bandpass Filter 7338
127 659.69-1 OD6 Ultra Narrow Bandpass Filter 7043
128 659.75-1 OD6 Ultra Narrow Bandpass Filter 7044
129 659.8-0.3 OD5 Ultra Narrow Bandpass Filter 7339
130 659.98-1 OD6 Ultra Narrow Bandpass Filter 7045
131 660-0.8 OD6 Ultra Narrow Bandpass Filter 7574
132 660-0.5 OD6 Ultra Narrow Bandpass Filter 7619
133 660.04-1 OD6 Ultra Narrow Bandpass Filter 7046
134 660.1-0.3 OD5 Ultra Narrow Bandpass Filter 7306
135 660.1-0.3 OD5 Ultra Narrow Bandpass Filter 7340
136 660.29-1 OD6 Ultra Narrow Bandpass Filter 7047
137 660.5-0.3 OD5 Ultra Narrow Bandpass Filter 7264
138 660.5-0.3 OD5 Ultra Narrow Bandpass Filter 7265
139 660.62-1 OD6 Ultra Narrow Bandpass Filter 7048
140 660.67-1 OD6 Ultra Narrow Bandpass Filter 7049
141 660.70-1 OD6 Ultra Narrow Bandpass Filter 7050
142 660.8-0.3 OD5 Ultra Narrow Bandpass Filter 7307
143 660.89-1 OD6 Ultra Narrow Bandpass Filter 7051
144 661.5-1 OD5 Ultra Narrow Bandpass Filter 7620
145 662.46-0.45 OD4 Ultra Narrow Bandpass Filter 7054
146 665.85-1 OD6 Ultra Narrow Bandpass Filter 7052
147 666.1-1 OD5 Ultra Narrow Bandpass Filter 7266
148 666.1-1 OD5 Ultra Narrow Bandpass Filter 7267
149 666.5-1 OD5 Ultra Narrow Bandpass Filter 7563
150 667.7-0.5 OD6 Ultra Narrow Bandpass Filter 7268
151 667.8-1.5 OD6 Ultra Narrow Bandpass Filter 7074
152 706.5-1.5 OD6 Ultra Narrow Bandpass Filter 7075
153 728.1-1.5 OD6 Ultra Narrow Bandpass Filter 7076
154 731.6-1 OD4 Ultra Narrow Bandpass Filter 7343
155 731.6-1 OD4 Ultra Narrow Bandpass Filter 7342
156 732.0-1 OD4 Ultra Narrow Bandpass Filter 7675
157 740.2-1 OD4 Ultra Narrow Bandpass Filter 7325
158 740.2-1 OD4 Ultra Narrow Bandpass Filter 7326
159 757.9-1 OD4 Ultra Narrow Bandpass Filter 7026
160 760.7-1 OD4 Ultra Narrow Bandpass Filter 7027
161 760.7-1 OD4 Ultra Narrow Bandpass Filter 7350
162 760.7-1 OD4 Ultra Narrow Bandpass Filter 7350
163 769.89-1 OD7 Ultra Narrow Bandpass Filter 7269
164 770-1 OD4 Ultra Narrow Bandpass Filter 7028
165 770.2-1 OD4 Ultra Narrow Bandpass Filter 7694
166 770.5-1 OD4 Ultra Narrow Bandpass Filter 7695
167 780-1 OD6 Ultra Narrow Bandpass Filter 7035
168 780-1 OD6 Ultra Narrow Bandpass Filter 7226
169 780.2-1 OD6 Ultra Narrow Bandpass Filter 7314
170 780.5-1 OD6 Ultra Narrow Bandpass Filter 7575
171 794-1.5 OD5 Ultra Narrow Bandpass Filter 7648
172 794.9-1 OD4 Ultra Narrow Bandpass Filter 7025
173 796.1-1 OD4 Ultra Narrow Bandpass Filter 7596
174 820-2 OD6 Ultra Narrow Bandpass Filter 7271
175 828-0.5 OD5 Ultra Narrow Bandpass Filter 7064
176 829-0.5 OD5 Ultra Narrow Bandpass Filter 7031
177 829.375-0.5 OD5 Ultra Narrow Bandpass Filter 7272
178 830-0.4 OD5 Ultra Narrow Bandpass Filter 7670
179 853.375-0.75 OD6 Ultra Narrow Bandpass Filter 7533
180 853.75-0.75 OD6 Ultra Narrow Bandpass Filter 7534
181 853.75-0.75 OD6 Ultra Narrow Bandpass Filter 7290
182 854-0.75 OD6 Ultra Narrow Bandpass Filter 7291
183 854.125-0.75 OD6 Ultra Narrow Bandpass Filter 7274
184 854.125-0.75 OD6 Ultra Narrow Bandpass Filter 7273
185 854.375-0.75 OD6 Ultra Narrow Bandpass Filter 7275
186 854.625-0.75 OD6 Ultra Narrow Bandpass Filter 7276
187 854.875-0.75 OD6 Ultra Narrow Bandpass Filter 7277
188 855.125-0.75 OD6 Ultra Narrow Bandpass Filter 7278
189 855.125-0.75 OD6 Ultra Narrow Bandpass Filter 7361
190 855.375-0.75 OD6 Ultra Narrow Bandpass Filter 7279
191 855.375-0.75 OD6 Ultra Narrow Bandpass Filter 7362
192 855.625-0.75 OD6 Ultra Narrow Bandpass Filter 7363
193 855.625-0.75 OD6 Ultra Narrow Bandpass Filter 7280
194 855.875-0.75 OD6 Ultra Narrow Bandpass Filter 7281
195 855.875-0.75 OD6 Ultra Narrow Bandpass Filter 7364
196 856.125-0.75 OD6 Ultra Narrow Bandpass Filter 7535
197 856.125-0.75 OD6 Ultra Narrow Bandpass Filter 7282
198 856.375-0.75 OD6 Ultra Narrow Bandpass Filter 7283
199 856.625-0.75 OD6 Ultra Narrow Bandpass Filter 7284
200 856.875-0.75 OD6 Ultra Narrow Bandpass Filter 7285
201 857.125-0.75 OD6 Ultra Narrow Bandpass Filter 7286
202 857.375-0.75 OD6 Ultra Narrow Bandpass Filter 7287
203 857.625-0.75 OD6 Ultra Narrow Bandpass Filter 7288
204 857.875-0.75 OD6 Ultra Narrow Bandpass Filter 7289
205 858-0.75 OD6 Ultra Narrow Bandpass Filter 7292
206 858.25-0.75 OD6 Ultra Narrow Bandpass Filter 7293
207 912-1.5 OD4 Ultra Narrow Bandpass Filter 7020
208 935.0-0.45 OD5 Ultra Narrow Bandpass Filter 7551
209 935.12-0.45 OD5 Ultra Narrow Bandpass Filter 7294
210 935.4-0.45 OD5 Ultra Narrow Bandpass Filter 7567
211 1030.7-3 OD5 Ultra Narrow Bandpass Filter 7355
212 1031.2-0.6 OD8 Ultra Narrow Bandpass Filter 7062
213 1031.4-0.6 OD8 Ultra Narrow Bandpass Filter 7630
214 1053-0.5 OD6 Ultra Narrow Bandpass Filter 7613
215 1053-4 OD6 Ultra Narrow Bandpass Filter 7012
216 1053-4 OD6 Ultra Narrow Bandpass Filter 7012
217 1060.7-2.6 OD5 Ultra Narrow Bandpass Filter 7347
218 1062.3-1.8 OD5 Ultra Narrow Bandpass Filter 7014
219 1063.1-1.8 OD6 Ultra Narrow Bandpass Filter 7063
220 1063.5-1 OD7 Ultra Narrow Bandpass Filter 7565
221 1063.9-1 OD6 Ultra Narrow Bandpass Filter 7017
222 1064-0.5 OD6 Ultra Narrow Bandpass Filter 7295
223 1064.1-1 OD7 Ultra Narrow Bandpass Filter 7084
224 1064.15-1.8 OD6 Ultra Narrow Bandpass Filter 7606
225 1064.15-1 OD8 Ultra Narrow Bandpass Filter 7685
226 1064.15-1 OD8 Ultra Narrow Bandpass Filter 7684
227 1064.16-0.4 OD5 Ultra Narrow Bandpass Filter 7055
228 1064.2-0.7 OD5 Ultra Narrow Bandpass Filter 7297
229 1064.2-0.6 OD5 Ultra Narrow Bandpass Filter 7544
230 1064.2-0.7 OD5 Ultra Narrow Bandpass Filter 7296
231 1064.4-2 OD6 Ultra Narrow Bandpass Filter 7299
232 1064.4-0.85 OD6 Ultra Narrow Bandpass Filter 7311
233 1064.4-0.85 OD6 Ultra Narrow Bandpass Filter 7298
234 1064.4-1 OD7 Ultra Narrow Bandpass Filter 7571
235 1064.6-0.4 OD6 Ultra Narrow Bandpass Filter 7300
236 1064.7-1 OD7 Ultra Narrow Bandpass Filter 7572
237 1064.9-0.4 OD5 Ultra Narrow Bandpass Filter 7545
238 1065-1 OD8 Ultra Narrow Bandpass Filter 7686
239 1065-3 OD4 Ultra Narrow Bandpass Filter 7538
240 1065-1.8 OD6 Ultra Narrow Bandpass Filter 7080
241 1072.3-5.2 OD6 Ultra Narrow Bandpass Filter 7061
242 1075-1.5 OD4 Ultra Narrow Bandpass Filter 7631
243 1083-1.4 OD3 Ultra Narrow Bandpass Filter 7301
244 1534.3-3 OD7 Ultra Narrow Bandpass Filter 7356
245 1550.12-4 OD6 Ultra Narrow Bandpass Filter 7324
246 1550.6-1.8 OD4 Ultra Narrow Bandpass Filter 7323
247 1571.91-1.2 OD5 Ultra Narrow Bandpass Filter 7304
248 1571.91-0.45 OD6 Ultra Narrow Bandpass Filter 7312
249 1571.91-1.2 OD5 Ultra Narrow Bandpass Filter 7304
250 1572.5-1.2 OD5 Ultra Narrow Bandpass Filter 7530
251 1645.05-1 OD5 Ultra Narrow Bandpass Filter 7303
252 1645.3-1 OD5 Ultra Narrow Bandpass Filter 7540
253 1645.7-2 OD2 Ultra Narrow Bandpass Filter 7302
254 1650.96-0.8 OD4 Ultra Narrow Bandpass Filter 7088



Alluxa超窄带滤光片插图Alluxa超窄带滤光片插图1Alluxa超窄带滤光片插图2Alluxa超窄带滤光片插图3

Text Widget
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Vivamus quis neque vel quam fringilla feugiat. Suspendisse potenti. Proin eget ex nibh. Nullam convallis tristique pellentesque.
