LDTLS波长可调单色光源
波长大范围可调谐光源
基本信息
LDTLS光源
- 高光通量 (300 nm – 1100 nm)
- 高达 3 mW 输出功率 (带宽 ~6.5 nm @ 1500 µm 光纤)
- 宽光谱范围: 170 nm – 2500 nm
- 低噪声，高稳定性
- 200 nm/s扫描速度
- 10,000+ 小时工作时间

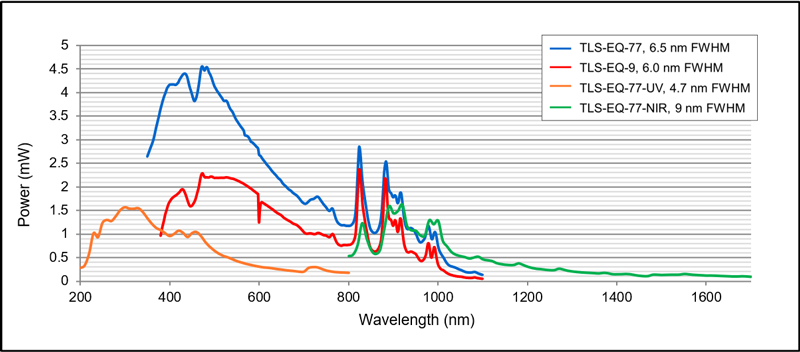

光谱图
参数配置
| TLS-EQ-9 | TLS-EQ-77 | TLS-EQ-77-UV | TLS-EQ-77-NIR | |
| Wavelength Range | 380 nm–1100 nm | 350 nm–1100 nm | 200 nm – 800 nm | 800 nm – 1700 nm |
| Wavelength Accuracy | +/- 0.5 nm | +/- 0.5 nm | +/- 0.5 nm | +/- 0.5 nm |
| Scan Speed | <20 ms for a 2 nm step | <20 ms for a 2 nm step | <20 ms for a 2 nm step | <20 ms for a 2 nm step |
| Standard Optical Output | 1500 µm core diameter fiber optic cable | 1500 µm core diameter fiber optic cable | 600 µm core diameter fiber optic cable | 1500 µm core diameter fiber optic cable |
| Numerical Aperature (NA) | 0.39 | 0.39 | 0.39 | 0.39 |
| Spectral Resolution (FWHM) | User selectable: 1.0 nm-8.0 nm | 6.5 nm | 4.7 nm | 9 nm |
| Laser Class | Class 1 (IEC 60825: 2014) | Class 1 (IEC 60825: 2014) | Class 1 (IEC 60825: 2014) | Class 1 (IEC 60825: 2014) |
| Maximum In-Band Flux | 2.37 mW at 824 nm | 4.9 mW at 400 nm | 1.6 mW at 300 nm | 1.62 mW at 920 nm |
| Average In-Band Flux | ~1.20 mW | ~2.3 mW | ~1.1 mW (200 nm – 500 nm) | ~0.44 mW |
